- 【Versatile Compatibility】Special designed for atv, utv, car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers
- 【Innovative Design】The newly designed model stands out in exploration. Its black frosted spray paint with new material resists rust. The all - steel shell safeguards the winch, and the new design promotes gearbox heat dissipation for long - term operation
- 【High - Performance Power】7.2hp 12v series wound motor and three-stage planetary gear system with free spooling clutch.85' Length7/16" Diameter Nlyon rope
- 【Superior Planetary Gearing】Three sets of 3-Stage Planetary enable differential, deceleration/acceleration, reversal,etc. The combined operation of multiple groups of planetary wheel systems can achieve a high gear ratio for coaxial deceleration/acceleration.
- 【Revolutionary Control】The 2-in-1 remote combines wired remote control and infrared remote control power system. The signal control range of the remote controller can reach up to 100ft. Both wired and infrared control have been integrated into this multifunctional controller
SPECIFICATIONS
| Rated line pull | 20,000LBS.(9,071kg)Single-line |
| Motor:permanent magnet | 12V DC Series Wound |
| Brake | Automatic screw cone |
| Geartrain | 4-Stage Planetary |
| Gear reduction ratio | 440:1 |
| Clutch | Sliding Ring Gear |
| Cable | Ø5/9"×69’(Ø13mm×22m) |

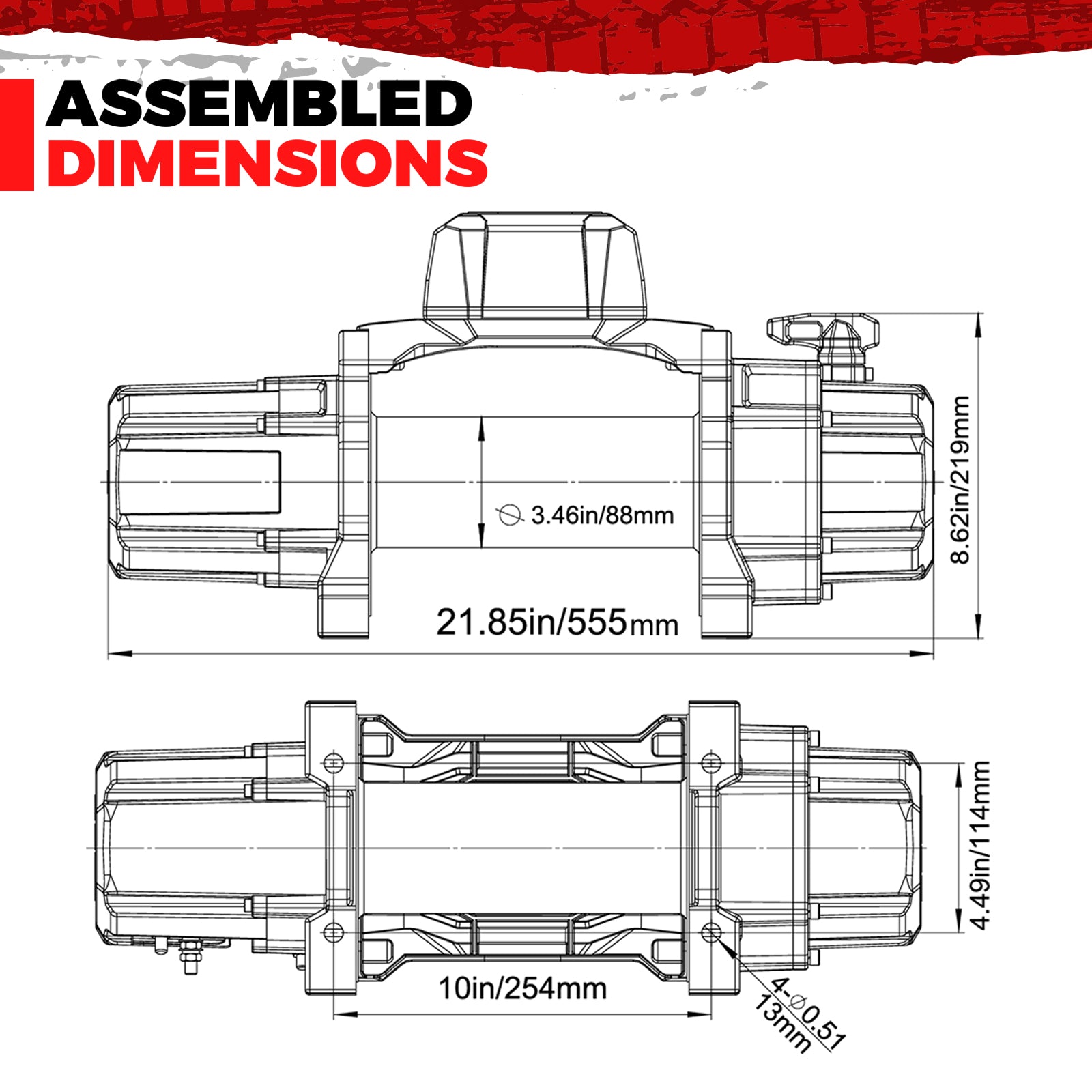

| Drum size | Ø2.48"×8.8"(Ø64mm×223mm) |
| Mounting bolt pattern | 10"×4.5"(254×114.3mm)4-M12 |
| Weight | 120lb |
Accessories
RUGCEL Overland Cargo Case 58L
RUGCEL Overland Cargo Case 98L
Expert Evaluation
My Special Edition Roxor is Done
- Rockhill farm
Testing the Cheapest Winch on Amazon
Rockhill farm
Portable Winch Review Rugcel 4500
- Full Quiver Outdoors
RUGCEL Tank 13500 Winch Install
- FishStickah
Budget Winch Setup That Actually Works *RUGCEL OFF-ROAD*
- Canadian Cruisin
Is this amazon winch any good? Rugcel 13k Winch
- Jt_nathann
You’d Think the Snow Was Gone… This 4x4 Proved Otherwise
- All Terrain Rescue
Rugcel Folding Truck Crane Review & Demonstration
- 613 Builds
Rugcel Folding Truck Crane & 12v Winch 1100 lb 360 Swivel Unboxing & Review
- 613 Builds
Got A Rugcel Crane And Winch For My Sawmill
- The Do It Yourself World
Rugcel Crane And Winch On My Harbor Freight Sawmill
- The Do It Yourself World
Folding Truck Mounted Crane - Initial Review (Rugcel, Rock Hulk, Pismire, Gripway)
- Derek's Workshop and Projects
The Back Saver- Rugcel 1100lb Crane
- North Florida Outdoorsman
Rock-Hulk 1100lb Folding Truck-Mounted Crane Electric Winch 2000 lb 12V, Painted Steel Pickup Truck
- Solar Power Electricity And Electronics
rugcell truck mounted electric crane in use with jump box
- small engine guys
FAQ
What types of winches does RUGCEL offer?
RUGCEL offers a wide range of recovery and lifting solutions, including:
Truck & SUV winches
ATV / UTV winches
Portable winches
Hydraulic winches
Recovery accessories & kits
Our products are designed for off-road recovery, towing, overlanding, workshop lifting, and heavy-duty applications.
Are RUGCEL winches waterproof?
Most RUGCEL electric winches are designed with waterproof or water-resistant protection for demanding outdoor environments such as mud, rain, snow, and off-road recovery conditions.
Please refer to the specific product page for detailed waterproof ratings and specifications.
What is the difference between synthetic rope and steel cable?
A.Synthetic Rope
Lightweight
Safer under tension
Easier handling
Ideal for off-road recovery
B.Steel Cable
Higher abrasion resistance
Better for harsh industrial environments
Lower maintenance sensitivity
The best option depends on your usage environment and recovery needs
How do I choose the right winch capacity?
As a general recommendation, your winch capacity should be at least——1.5 times your vehicle’s gross weight.
For example:
ATV/UTV: 2500lb–4500lb
SUVs & Jeeps: 9500lb–13500lb
Heavy trucks & extreme recovery: 15000lb+
If you are unsure, our support team can help recommend the right model.
Can your winches be used for trailers or lifting applications?
Yes. Many RUGCEL winches are suitable for trailers, equipment loading, workshop pulling, and certain lifting applications.
Please always follow proper safety guidelines and product usage recommendations.
What vehicles are compatible with RUGCEL winches?
RUGCEL winches are compatible with a wide range of vehicles, including:
Jeeps
Trucks
SUVs
ATV / UTVs
Trailers
Overland vehicles
Please check the recommended vehicle weight and mounting requirements before purchasing.
Do your winches include wireless remote controls?
Many RUGCEL winch models include wireless remote controls for convenient operation.
Some models also support both wired and wireless control systems. Please refer to individual product specifications for details.
Are RUGCEL winches suitable for extreme off-road recovery?
Yes. Our winches are designed for demanding recovery environments including:
Mud
Sand
Snow
Rocky terrain
Steep inclines
Selected models are tested for heavy-duty off-road recovery applications.
How difficult is winch installation?
Most RUGCEL winches are designed for straightforward installation with standard mounting systems.
Installation difficulty may vary depending on:
Vehicle type
Mounting plate compatibility
Electrical setup
Professional installation is recommended for best performance and safety.
How should I maintain my winch?
Regular maintenance helps extend winch lifespan and performance. We recommend:
Inspecting rope or cable condition regularly
Cleaning mud, sand, and debris after use
Checking electrical connections
Properly spooling the rope after recovery
Storing the remote control in a dry place
Following proper maintenance procedures ensures reliable long-term operation.
