- [New shell painting process] It has better UV resistance, protecting the winch for long-term operation. It has super strong wear and corrosion resistance, allowing the winch to roam freely in snow, sand, and mud.

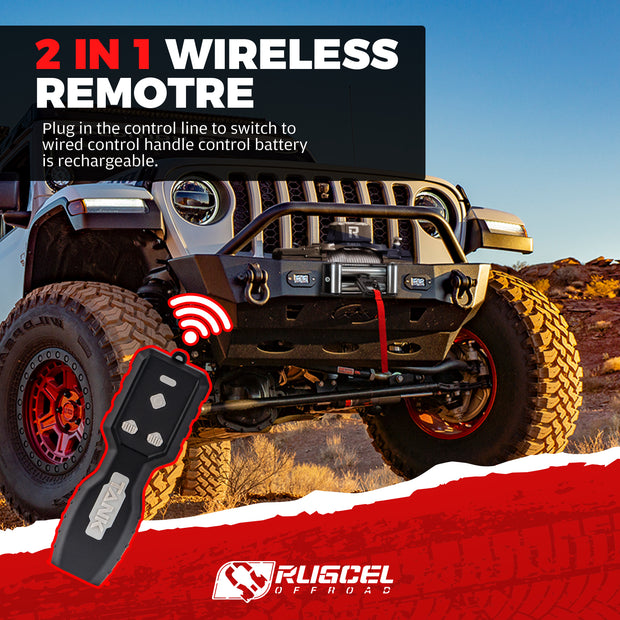

- [Top-notch R&D technology] The newly developed automatic clutch system only requires wireless remote control to achieve the winch's disengagement function without manual operation.

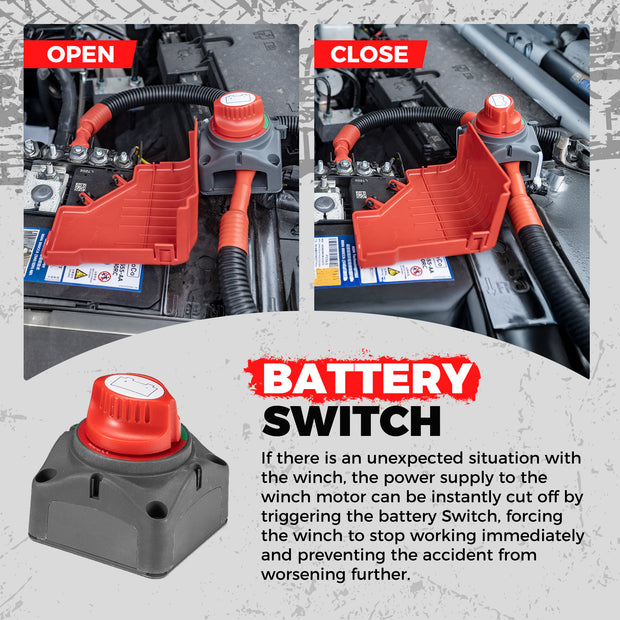

- [Superior safety protection] Equipped with a power-off switch to prevent accidental power loss of the vehicle. Equipped with a winch guide mouth protection block that can perfectly store the winch hook.
- [3-stage planetary] Powerful 3-stage planetary gears with a gear ratio of 236:1 drive both input and output motors. With positive and negative load control, powerful current not only supports smooth motor operation but also runs within the rated current range without any current impact, ensuring the safety of electric winches at all times.
- [Pure copper cable] EMCP 13500lbs winch uses pure copper cables, which have advantages such as strong stability, high extensibility, corrosion resistance, oxidation resistance, and high conductivity.

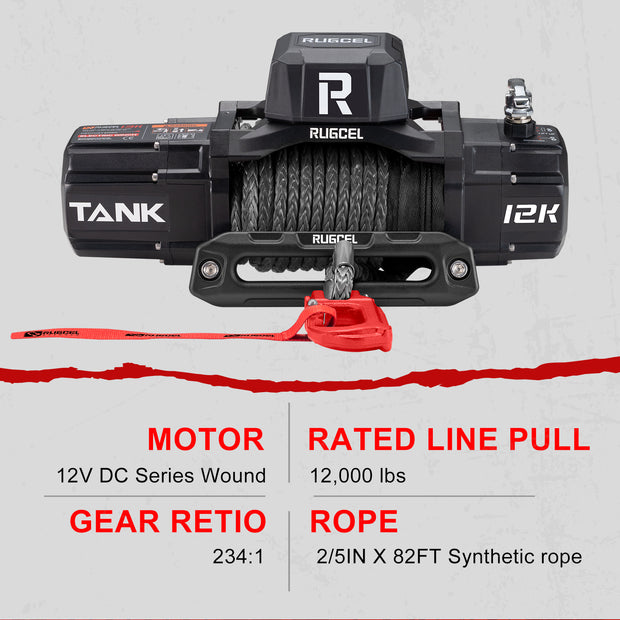

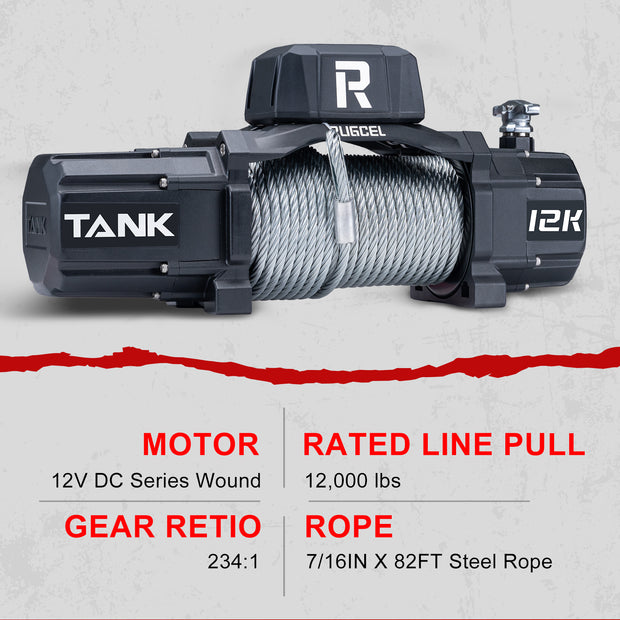

SPECIFICATIONS

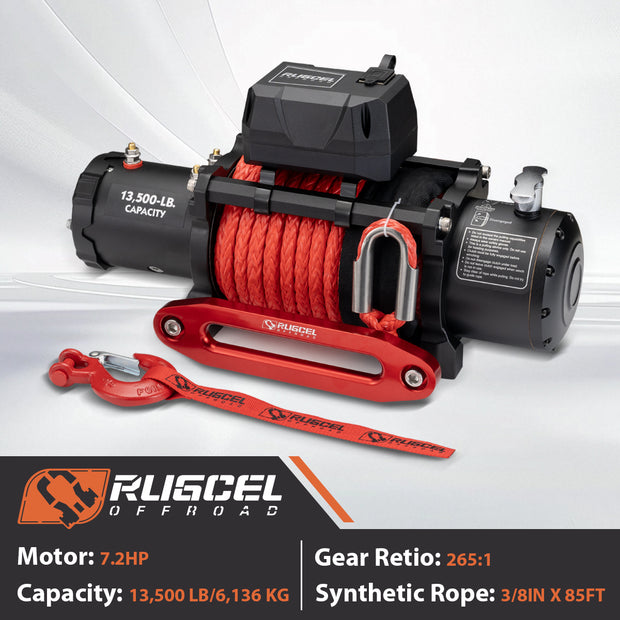

| Rated line pull | 12000lbs (5443 kgs)/13500 lbs (6123 kgs) |
| Motor:permanent magnet | 12V DC 6.6hp/4800W(12000LB) |
| 12V DC 7.2hp/5400W(13500LB) | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 236:1 |

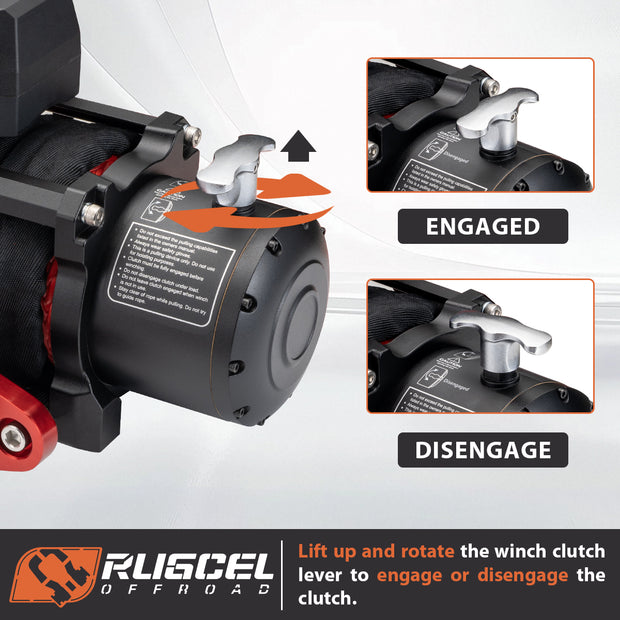

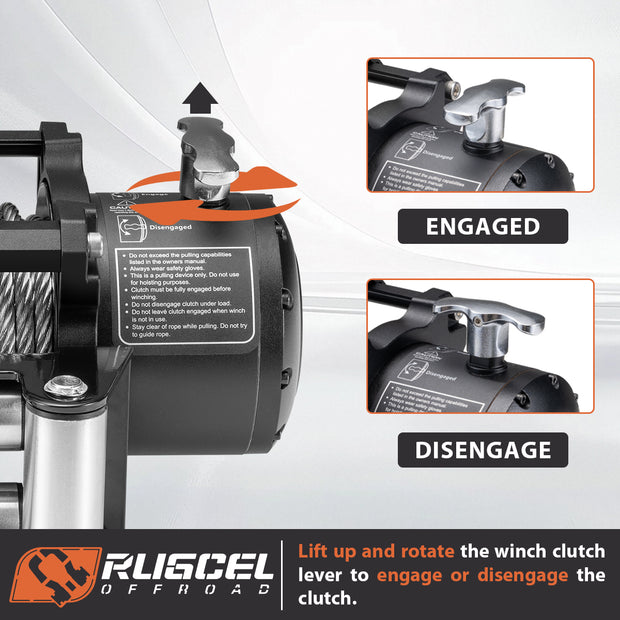

| Clutch | Wireless control clutch |
| Cable(Dia×L) | Ø1/2"×72’(Ø13mm×22m) |
| Drum size(Dia×L) | Ø2.48"×8.8"(Ø64mm×223mm) |

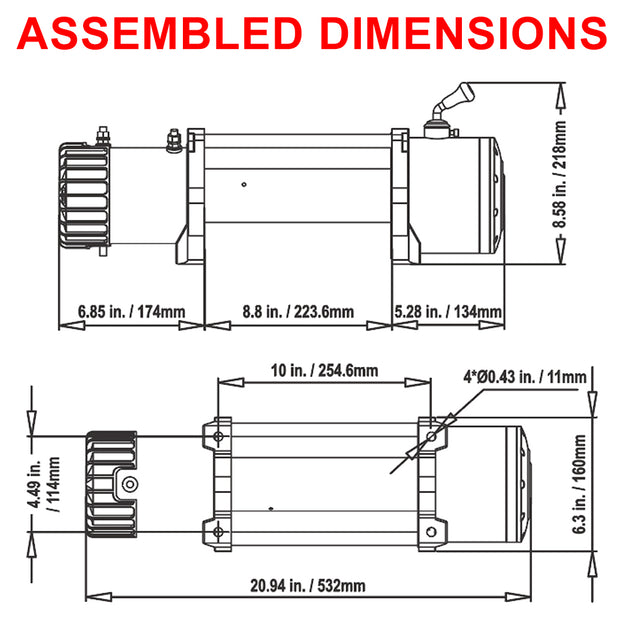

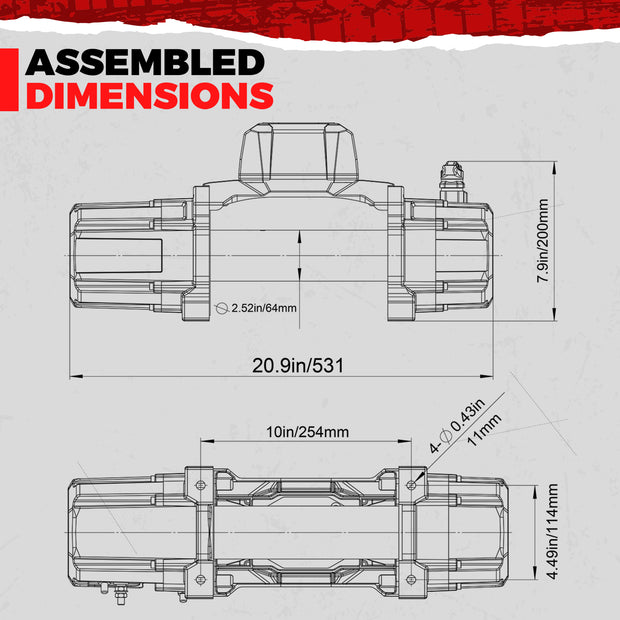

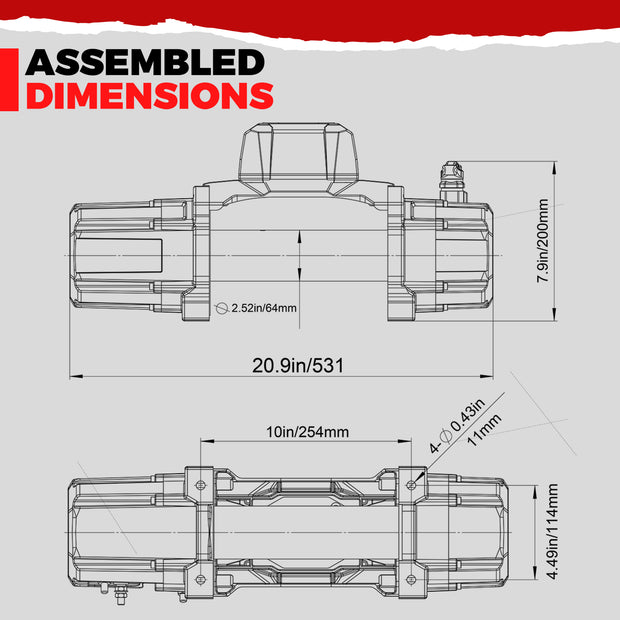

| Mounting bolt pattern | 10"×4.5"(254×114.3mm)4-M10 |
| Net weight | 77lbs/35kgs |
